Inmarsat IsatHub iSavi Satellite Terminal

Inmarsat IsatHub iSavi Satellite Terminal

Regular price $1,449.00 USD
Regular price Sale price $1,449.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:IN-ISAVI

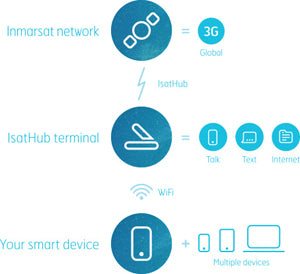

The IsatHub iSavi is a portable satellite terminal that can be used for Inmarsat satellite voice, broadband data and messaging on the go in the most remote areas. Subscribers can access the services through their Wi-Fi enabled mobile devices, such as smartphones, tablets and laptops.

Supported services:

  • Standard IP: Up to 240/384kbps (send/receive)
  • BGAN Streaming: 32, 64 kbps
  • Satellite voice: Circuit-switched, via built-in SIP server for use with mobile devices.
  • Text messaging (SMS): up to 160 characters, supports multipart messages
  • Wi-Fi 802.11 b/g/n access point with up to 30m (100 feet) hotspot

Specifications:

  • Satellite network: Inmarsat
  • Dimensions: 180 x 170 x 30 mm (7.09 x 6.69 x 1.18 in.)
  • Weight: 880 g (1.94 lbs) with battery
  • Interfaces:
    - Wi-Fi 802.11 b/g/n
    - Micro USB (for maintenance only)
    - Micro-SIM card slot
  • Water & dust ingress protection: IP65
  • Operating temperature: -20...55ºC (-4...131ºF)
  • Storage temperature:
    -40...80ºC (-40...176ºF) (terminal only)
    -20...40ºC (-4...104ºF) (with battery)
  • Charging temperature: 0...40ºC (32...104ºF)
  • Storage Humidity: 95% RH (at 40ºC)
  • Power Adaptor: Input: 100-240VAC, Output: 18VDC, 65W
  • Battery: 10.8V @ 3Ah Li-Ion
  • Operating time: Up to 2.5 hours
  • Standby time: Up to 24 hours

In the box:

  • iSavi terminal
  • Battery pack
  • Universal AC Adapter / Charger
  • International Outlet Plugs
  • Micro USB cable
  • Quick start guide (8 languages)
  • Warranty Documentation
  • Support USB memory drive
  • Prepaid SIM-card (no airtime included unless ordered separately)

Prepaid Service Plans for iSavi:

Voucher/Units
Validity
Price
Included airtime
MBs
Minutes
50-unit
90 days
$138
5.5
50
500-unit
180 days
$425
55
500
1000-unit
365 days
$825
110
1,000
2500-unit
365 days
$1,895
275
2,500
5000-unit
365 days
$3,695
550
5,000

Airtime burn rates

Calls to
Units/min.
Fixed phones (landlines)
1.30
Cellular phones
1.30
Voicemail
1.30
ISatPhone / ISatPhone Pro
1.30
BGAN, FBB and SBB
1.30
Text Message / SMS
0.50
Globalstar
8.00
Iridium
11.00
Thuraya
5.00
Other MSS Carriers
6.90
Inmarsat B (Voice)
3.40
Inmarsat M (Voice)
2.90
Inmarsat Mini-M/GAN/Fleet/Swift
2.50
Inmarsat aero
4.90
Incoming calls & messages
FREE

Notes:

  • Minimum Call Duration: 30 sec
  • Billing Increment: 15 sec
  • Voice rates apply to 2.4kbps data

Satellite coverage:

Inmarsat BGAN for iSavi coverage is worldwide, apart from the Poles.

This map is illustrative of Inmarsat voice services coverage. It does not provide a guarantee of the extent of service availability. Please note, Alphasat coverage prioritizes the region north of 44°S and service may degrade south of this latitude.
