Iridium Mobile Antenna - Magnet Mount Antenna

Iridium Mobile Antenna - Magnet Mount Antenna

  • $169.00

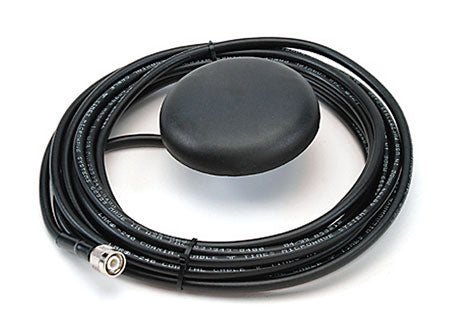

This Iridium Mobile magnet-mount Antenna delivers improved reception over the standard Portable Auxiliary Antenna. Built-in magnetic mount is used to secure the antenna to large metallic surfaces such as a vehicle rooftop.

Specifications:

  • Diameter: 8.9 cm (3.5 in)
  • Height: 2.2 cm (0.85 in)
  • Weight: 405 g (14.3 oz)
  • Operating Temperature: -40 to +70°C
  • Cable Type & Length: LMR-240, 16 feet (5 m)
  • Antenna Connector: TNC Male
  • Impedance: 50 Ohm
  • VSWR: < 2:1
  • Frequency: 1616—1625.5 MHz
  • Polarization: Right hand circular
  • Axial Ratio: 15 dB Max
  • Radiation Pattern:
    1.0 dB: Zenith to 40°
    0.5 dB: 40° to 70°
    -0.5 dB: 70° to 80°

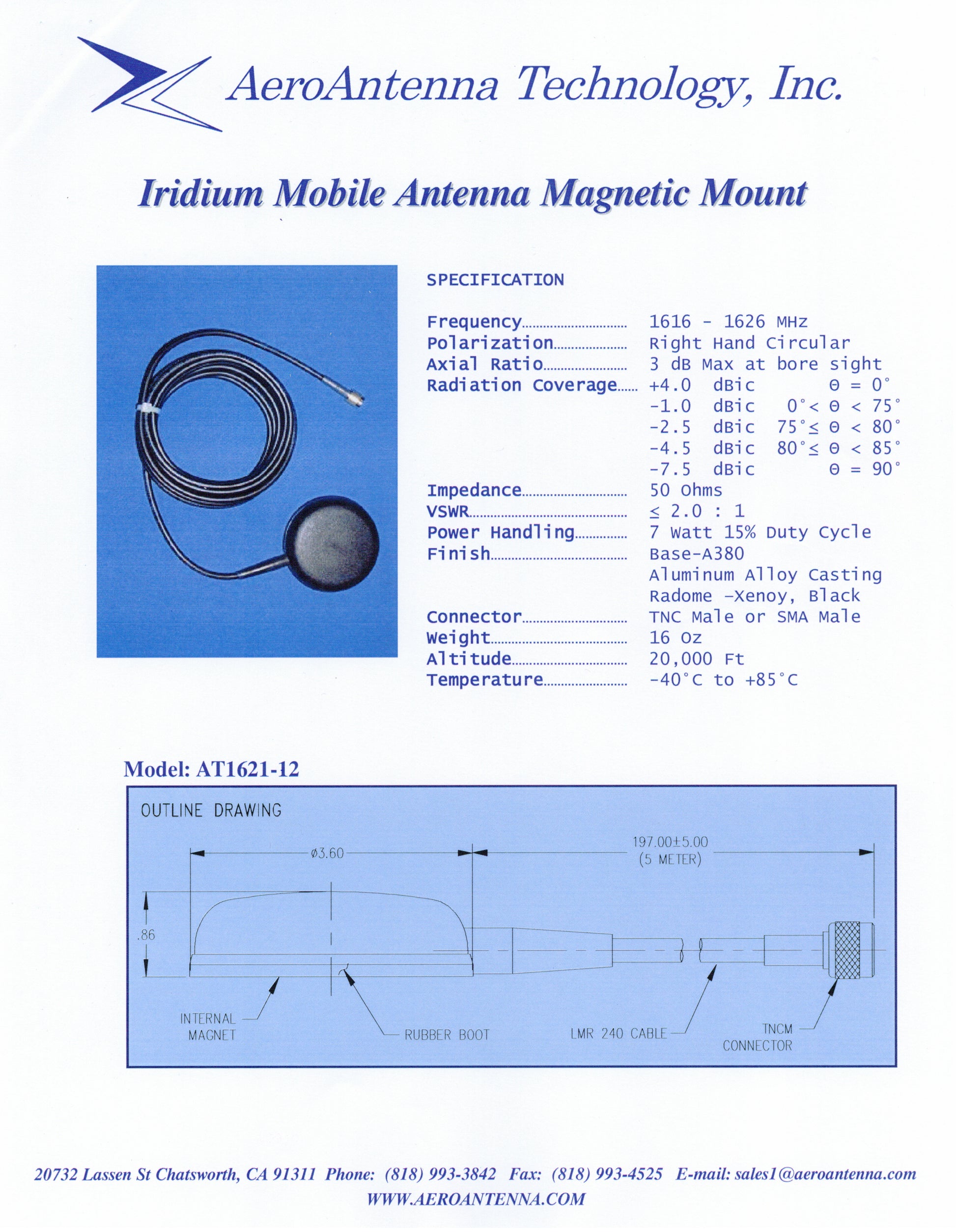

Manufacturer: AeroAntenna Technology
Part #: AT1621-12 (black), also known as SAF5340B
