Iridium 9555 Office RJ-11 Docking Station
Iridium 9555 Office RJ-11 Docking Station

Iridium 9555 Office RJ-11 Docking Station

SATTRANS Iridium 9555 Office Docking Station allows advance use of Iridium 9555 satellite phones indoors. The docking station provides capability of connecting regular phones via RJ-11 or PBX, antenna cable feed and power supply from an electric outlet.

IMPROVED! Now with RJ-11 support! Connect up to 2 regular phones (corded or cordless) and use them to make, receive and transfer Iridium satellite calls.

Features:

  • Full duplex hands-free operation of Iridium 9555 phones
  • Perfect voice reproduction and echo cancellation
  • RJ-11 support: make satellite calls with regular phones or integrate into your PBX
  • Direct data pass through via mini-USB data port (no additional PC drivers needed)
  • Compatible with GMN xWA-203 Optimizer
  • 2.5mm (3/32") audio jack for a handset or earpiece
  • Charges phone battery
  • Two-year worldwide warranty
  • Certified by Iridium for use on its network
  • Comparable to ASE DK075 and Beam PotsDOCK 9555 stations

Specifications:

  • Operating temperature: -13...176 F (-25...80 C)
  • Input power: 10—16V DC, max 2A
  • Height (cradle): 7.5 in. (190 mm)
  • Width (cradle): 2.76 in. (70 mm)
  • Depth (cradle): 2.4 in. (61 mm)
  • Weight (box): 2 lbs (0.9 kg)
  • Compatibility: Iridium 9555 handset with standard battery

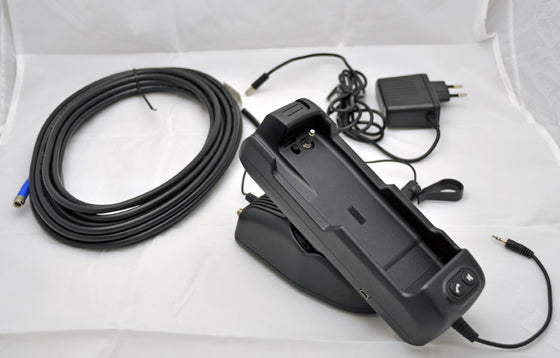

In the box:

  • Cradle for Iridium 9555
  • Desktop Stand with two (2) RJ-11 ports, 2.5mm audio socket, antenna port (SMA-female), power input and connected external microphone
  • Wall AC/DC Power Adapter (110-220 V) with plugs
  • 26 ft (8m) 240-series cable with SMA-m connectors
  • 1 ft (0.3m) 240-series cable with SMA-m and TNC-f connectors
  • TNC-f-to-SMA-f adapter
  • User Manuals

Additional accessories:
