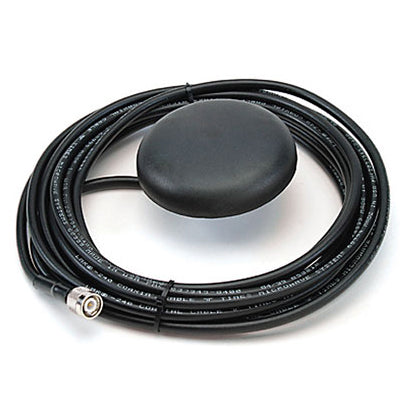

Iridium Mobile Antenna - Permanent Mount

Iridium Mobile Antenna - Permanent Mount

  • $169.00


This Iridium Mobile Antenna delivers improved reception over the standard Portable Auxiliary Antenna. The permanent mount allows to secure the antenna permanently to various flat surfaces.

Specifications:

  • Diameter: 8.9 cm (3.5 in)
  • Height: 2.1 cm (0.83 in)
  • Weight: 405 g (14.3 oz)
  • Mount: Permanent
  • Cable: LMR-240, 16 feet (5 m)
  • Antenna Connector: TNC Male
  • Operating Temperature: -40 to +85°C
  • Impedance: 50 Ohm
  • VSWR: < 2:1
  • Frequency: 1616—1626 MHz
  • Polarization: Right hand circular
  • Axial Ratio: 3 dB Max at bore sight
  • Radiation Coverage:
    +4.0 dBic θ=0°
    -1.0 dBic 0°<θ<75°
    - 2.5 dBic 75°<θ<80°
    - 4.5 dBic 80°<θ<85°
    - 7.5 dBic θ=90°
  • Manufacturer: AeroAntenna Technology
  • Part #: AT1621-5, also known as SAF2040A and RST720
